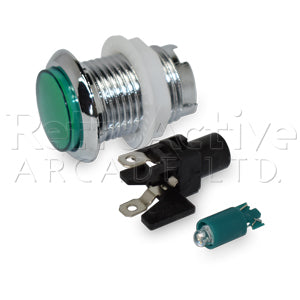

Illuminated Chrome Pushbutton (Convex) in Green
Full sized and slightly convex with a firm spring. The super bright LED's allow for a bright console. Buttons work great for Admin functions as well. Pushbutton mounts in 1-1/8" hole (standard). These LEDs require +12v power.
Need a +5v button for your Arcade1up or Raspberry Pi Arcade? Check out our +5V LED Lamps to swap out the +12v LED Lamps that come with these buttons by default.
- 1x Green Chrome LED Button
- 1x +12v LED Lamp
- 1x Lamp Holder
- 1x Microswitch
- 1x Button Nut
*Stock Image Used. Item received may not be exactly as seen*
Wiring Information: Button wiring is 1 wire for ground connection and 1 wire for signal connection. LED wiring is 1 wire for the positive connection and 1 wire for the negative connection.
- Microswitch terminal: 0.187"
- LED Lamp Holder terminal: 0.250"
Don't know the difference between 0.110", 0.187" and 0.250" Terminal Connectors? Check out the diagram that explains this below! Click on the image to view the full size.
Don't know which side of your LED Lamps are positive and negative? Check out the diagram below explaining the LED Lamp Polarity. Click on the image to view the full size.
